1.0GHz Integer PLL
The ll_pll2551s01_ln28lpp_7002 is a 1.8V/1.0V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit pre-divider, a 10-bit main-divider, a 3-bit scaler, and an automatic frequency control (AFC).
View 1.0GHz Integer PLL full description to...
- see the entire 1.0GHz Integer PLL datasheet
- get in contact with 1.0GHz Integer PLL Supplier

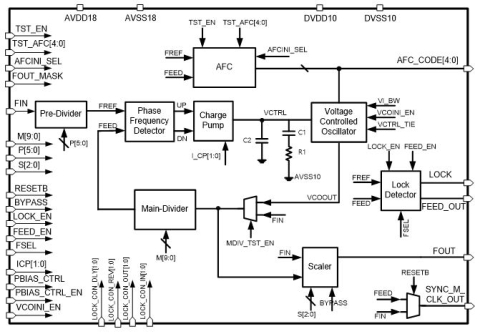

Block Diagram of the 1.0GHz Integer PLL IP Core
