1.25 Gbps 4-Channel LVDS Deserializer in Samsung 28FDSOI

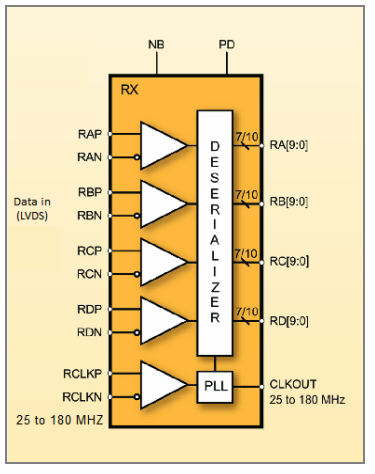

The 4-Channel LVDS Deserializer is a high performance 4-channel LVDS Receiver implemented using digital CMOS technology. Both the serial and parallel data are organized into four channels. The parallel data can be 7 or 10 bits wide per channel. The input clock is 25MHz to 180MHz. The Receiver is highly integrated and requires no external components. Great care was taken to insure matching between the Data and Clock channels to maximize the receiver margin. The circuit is designed in a modular fashion and desensitized to process variations. This facilitates process migration, and results in a robust design.
