1.2V Power On Reset

The power on reset can provide system a reset signal to SoC. The power on reset contains a voltage detection block and a delay cell. The power on reset detects power rising over 0.7V and flags a reset signal from low to high. It operates in junction temperature of -40℃~125℃.

View 1.2V Power On Reset full description to...

see the entire 1.2V Power On Reset datasheet
get in contact with 1.2V Power On Reset Supplier

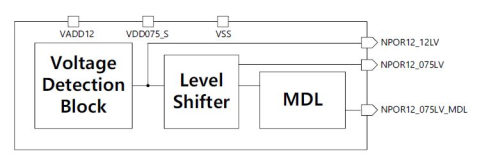

Block Diagram of the 1.2V Power On Reset IP Core
