100MHz Low Jitter PLL

The ll_pll1421s01_ln14lpp_34201 is a 1.8V/0.8V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit predivider, a 10-bit main-divider, a 3-bit scaler, and an automatic frequency control (AFC).

View 100MHz Low Jitter PLL full description to...

see the entire 100MHz Low Jitter PLL datasheet
get in contact with 100MHz Low Jitter PLL Supplier

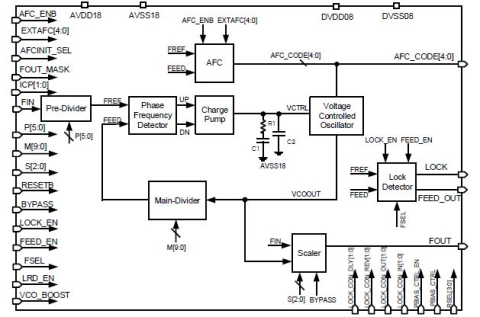

Block Diagram of the 100MHz Low Jitter PLL IP Core
