The ll_pll1445s01_ln14lpp_34201 is a 1.8V/0.8V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit predivider, a 10-bit main-divider, a 3-bit scaler, a delta-sigma modulator (DSM) and an automatic frequency control (AFC).
View
3.5GHz Fractional-N/SSC PLL
full description to...
see the entire
3.5GHz Fractional-N/SSC PLL
datasheet
get in contact with
3.5GHz Fractional-N/SSC PLL
Supplier

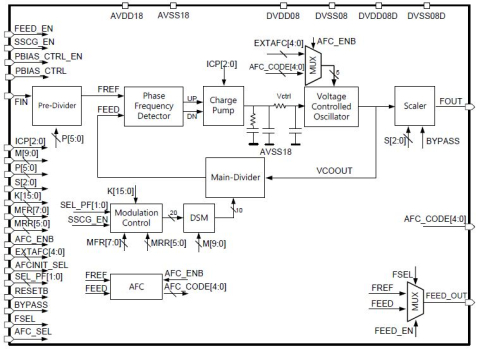

Block Diagram of the 3.5GHz Fractional-N/SSC PLL IP Core
