4.3GHz Integer PLL
This PLL is a 1.8V/0.8V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit pre-divider, a 10-bit main-divider, a 3-bit scaler, and an automatic frequency control (AFC).
View 4.3GHz Integer PLL full description to...
- see the entire 4.3GHz Integer PLL datasheet
- get in contact with 4.3GHz Integer PLL Supplier

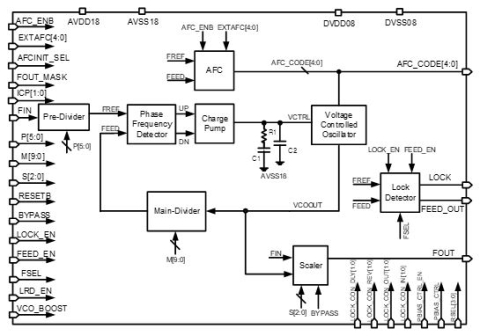

Block Diagram of the 4.3GHz Integer PLL IP Core
