AHB Triple DES with DMA

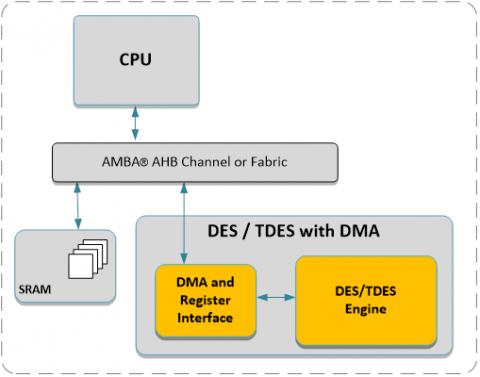

The AHB DES/TDES Encryption/Decryption Engine is a configurable core that interfaces to an AHB microprocessor bus. The Controller encrypts or decrypts blocks of data based on the DES encryption standard. In order to accommodate a wide variety of system requirements, the Engine can be generated in two modes: LowLatency and LowGateCount. For a TDES system, three DES cores are instantiated. The table below summarizes the options and how to implement them. The checked definitions should be defined and the definitions not checked should be commented out. In this table LL refers to Low Latency and LGC refers to Low Gate Count.
