DDR5 Registering Clock Driver (RCD) (DDR5RCD01)
The DDR5RCD01 is a registering clock driver used on DDR5 RDIMMs and LRDIMMs. Its primary function is to buffer the Command/Address (CA) bus, chip selects, and clock between the host controller and the DRAMs. It also creates a BCOM bus which controls the data buffers for LRDIMMs.
View DDR5 Registering Clock Driver (RCD) (DDR5RCD01) full description to...
- see the entire DDR5 Registering Clock Driver (RCD) (DDR5RCD01) datasheet
- get in contact with DDR5 Registering Clock Driver (RCD) (DDR5RCD01) Supplier

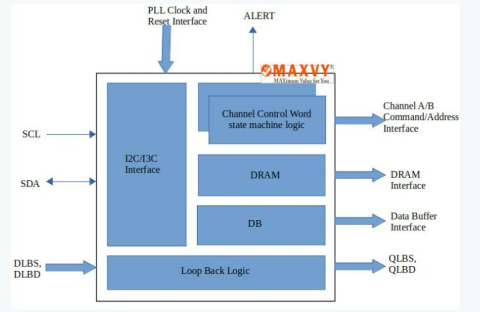

Block Diagram of the DDR5 Registering Clock Driver (RCD) (DDR5RCD01)
