Four Channel (4CH) LVDS in TSMC 40LP

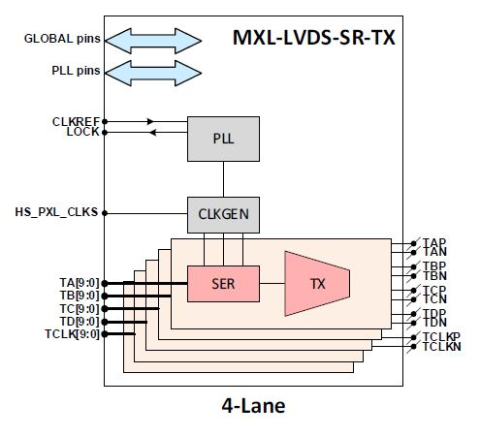

The MXL-LVDS-4CH-TX-T-40LP is a high-performance 4-channel LVDS transmitter implemented using digital CMOS technology. With a maximum transmit clock frequency of 143 MHz, it converts 28/40 bits of CMOS data into four LVDS data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. The circuit is designed in a modular fashion and desensitized to process variations resulting in a robust design.
