LTE Release-10 Baseband Protocol Stack (L2-L3) SW IP
This is a 3GPP Release 10 compliant LTE eNodeB Protocol Stack SW IP, which is a Macro cell LTE available for commercial deployment of LTE Networks and manufacturing.
Below is the Software specification for the LTE e-nodeB
Up to 300 active users supported
2x2 MIMO, 4x2 MIMO and 4x4 MIMO
1.4, 3, 5, 10 and 20 MHz bandwidth support
TDD/ FDD Support
Modulation supported: QPSK, QAM16 and QAM64 (only DL)
Peak Data Rate: 300 Mbps in DL and 50 Mbps in UL.
QoS: Supports 3GPP specified QoS Class Identifier.
The solution includes an interactive configuration tool with which user can manage all standard configurations. There is also an integrated GUI to manage multiple NIB/ e-NodeB, configure them and display KPIs from each of them. The solution supports SNMPv3 to integrate with NMS tool to enable monitoring and configuration management.
Below is the Software specification for the LTE e-nodeB
Up to 300 active users supported
2x2 MIMO, 4x2 MIMO and 4x4 MIMO
1.4, 3, 5, 10 and 20 MHz bandwidth support
TDD/ FDD Support
Modulation supported: QPSK, QAM16 and QAM64 (only DL)
Peak Data Rate: 300 Mbps in DL and 50 Mbps in UL.
QoS: Supports 3GPP specified QoS Class Identifier.
The solution includes an interactive configuration tool with which user can manage all standard configurations. There is also an integrated GUI to manage multiple NIB/ e-NodeB, configure them and display KPIs from each of them. The solution supports SNMPv3 to integrate with NMS tool to enable monitoring and configuration management.
View LTE Release-10 Baseband Protocol Stack (L2-L3) SW IP full description to...
- see the entire LTE Release-10 Baseband Protocol Stack (L2-L3) SW IP datasheet
- get in contact with LTE Release-10 Baseband Protocol Stack (L2-L3) SW IP Supplier

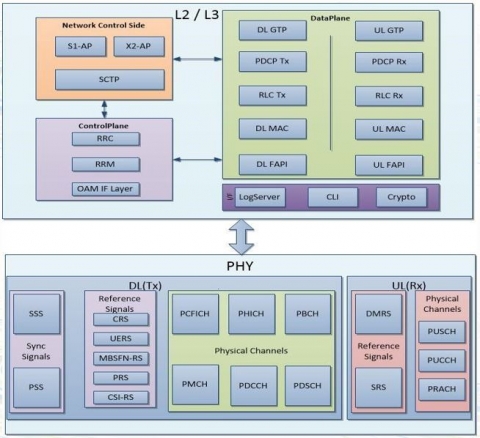

Block Diagram of the LTE Release-10 Baseband Protocol Stack (L2-L3) SW IP
