LVDS IO handling data rate up to 50Mbps with maximum loading 60pF
KA16UGLVDS01ST001 is a LVDS IO handling data rate up to 50Mbps with a maximum loading of 60pF. The differential voltage swing can be programmable from 0.35V to 1V. The output enable control function can be activated to decide the IO as input/output function. This IP also includes the IO PAD.
View LVDS IO handling data rate up to 50Mbps with maximum loading 60pF full description to...
- see the entire LVDS IO handling data rate up to 50Mbps with maximum loading 60pF datasheet
- get in contact with LVDS IO handling data rate up to 50Mbps with maximum loading 60pF Supplier

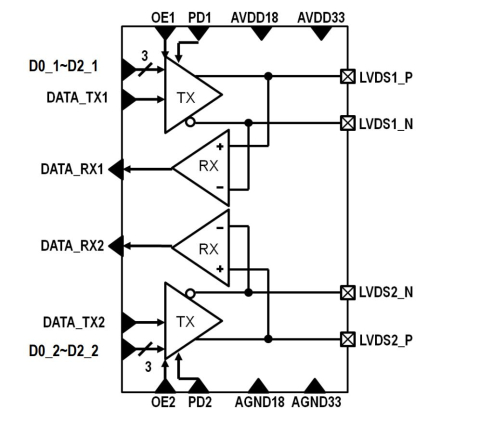

Block Diagram of the LVDS IO handling data rate up to 50Mbps with maximum loading 60pF
