LVDS Transmitter
The transmitter is designed to support Single link transmission between Host and Flat Panel Display up to 1080p resolutions, Dual Link transmission between Host and Flat Panel Display up to QXGA resolutions. The transmitter converts 70 bits of CMOS data into LVDS (Low Voltage Differential Signaling) data streams. Using a 150MHz clock, the data throughput is 10.5Gbps.
View LVDS Transmitter full description to...
- see the entire LVDS Transmitter datasheet
- get in contact with LVDS Transmitter Supplier

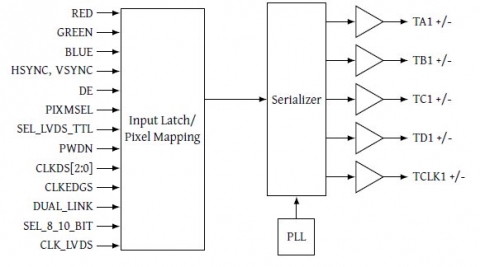

Block Diagram of the LVDS Transmitter IP Core
LVDS Transmitter IP
- Display LVDS/MIPI D-PHY/sub-LVDS combo Transmitter 1.0G/2.5G/1.0Gbps 10-Lane
- MIPI D-PHY/LVDS Combo TX (Transmitter) for Automotive in Samsung 28FDSOI
- Display LVDS single link/dual link Transmitter 1.12Gbps 8-Lane
- MIPI D-PHY CSI-2 TX (Transmitter) in TowerJazz 65BSB
- IGALVDV05A, TSMC CLN12FFC 6-Channel LVDS Transmitter PHY
- LVDS 10 bits dual port transmitter
