MIPI C-PHY CSI-2 TX+ (Transmitter) IP in TSMC 40ULP
The MXL-CPHY-CSI-2-TX+ is a high-frequency low-power, low-cost, source-synchronous, physical Layer. The PHY is configured as a MIPI Master supporting camera interface CSI-2. The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
View MIPI C-PHY CSI-2 TX+ (Transmitter) IP in TSMC 40ULP full description to...
- see the entire MIPI C-PHY CSI-2 TX+ (Transmitter) IP in TSMC 40ULP datasheet
- get in contact with MIPI C-PHY CSI-2 TX+ (Transmitter) IP in TSMC 40ULP Supplier

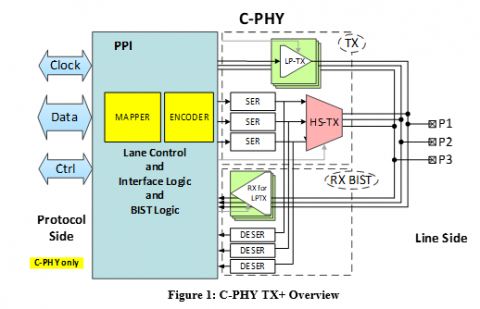

Block Diagram of the MIPI C-PHY CSI-2 TX+ (Transmitter) IP in TSMC 40ULP
MIPI transmitter IP
