MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 3.5Gsps/2.5Gbps, 2T/2L
The MXL-CDPHY-CSI-2-TX+-40LP is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.1 and C-PHY v1.2. The PHY can be configured as a MIPI Master supporting camera interface CSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications. The CSI-2 TX+ is a Mixel proprietary configuration that is optimized to support full-speed production and in-system testing while minimizing area and leakage power.
View MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 3.5Gsps/2.5Gbps, 2T/2L full description to...
- see the entire MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 3.5Gsps/2.5Gbps, 2T/2L datasheet
- get in contact with MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 3.5Gsps/2.5Gbps, 2T/2L Supplier

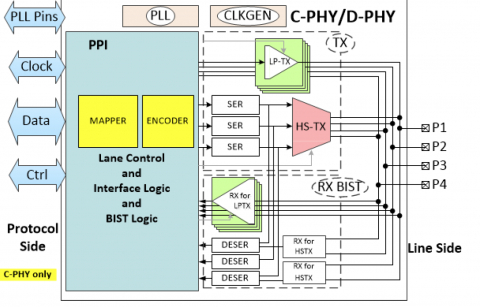

Block Diagram of the MIPI C-PHY/D-PHY Combo CSI-2 TX+ IP 3.5Gsps/2.5Gbps, 2T/2L
