MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP
The MXL-CPHY-DPHY-UNIV is a high-frequency low-power, low-cost, source-synchronous, physical Layer. The PHY can be configured as a MIPI Master or MIPI Slave supporting camera interface CSI-2 v1.2 and display interface DSI v1.3 applications in the D-PHY mode. It also supports camera interface CSI-2 v1.3 and display interface DSI-C v1.0 applications in the C-PHY mode. The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
View MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP full description to...
- see the entire MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP datasheet
- get in contact with MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP Supplier

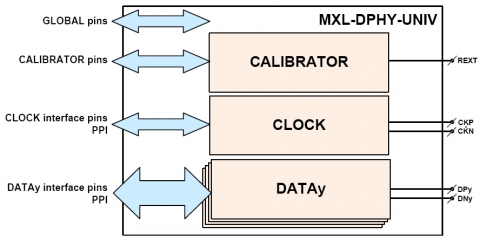

Block Diagram of the MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP
Video Demo of the MIPI C-PHY/D-PHY Combo Universal IP in UMC 40LP
Mixel, in collaboration with Rambus and Hardent, demonstrates an integrated display IP subsystem solution that combines the Mixel MIPI D-PHY℠ DSI TX IP, Rambus MIPI DSI-2℠ host controller, and Hardent VESA Display Stream Compression (DSC) IP. This complete solution targets display applications requiring high bandwidth and excellent power efficiency for mobile, AR/VR and automotive.
