MIPI D-PHY CSI-2 RX+ IP in TSMC 28HPC+ for Automotive Applications
The MXL-DPHY-CSI-RX+-T-28HPC+ is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.5. The PHY can be configured as a MIPI Slave supporting camera interface CSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications. The CSI-2 RX+ is a Mixel patented configuration that is optimized to support full-speed production and in-system testing while minimizing area and leakage power.
View MIPI D-PHY CSI-2 RX+ IP in TSMC 28HPC+ for Automotive Applications full description to...
- see the entire MIPI D-PHY CSI-2 RX+ IP in TSMC 28HPC+ for Automotive Applications datasheet
- get in contact with MIPI D-PHY CSI-2 RX+ IP in TSMC 28HPC+ for Automotive Applications Supplier

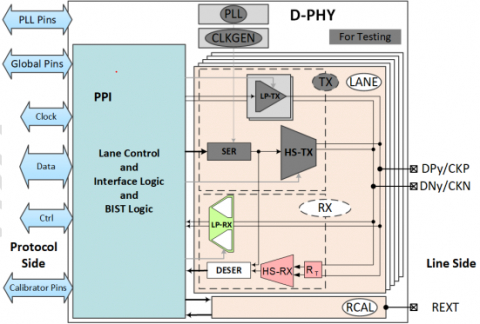

Block Diagram of the MIPI D-PHY CSI-2 RX+ IP in TSMC 28HPC+ for Automotive Applications
