MIPI D-PHY CSI-2 RX+ (Receiver) IP in UMC 40ULP
The MXL-DPHY-CSI-2-RX+ is a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI Alliance Specification for D-PHY v2.1, which is backward compatible with MIPI Specification for D-PHY v1.1.
The IP is configured as a MIPI Slave optimized for CSI-2 (Camera Serial Interface) applications. The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
The IP is configured as a MIPI Slave optimized for CSI-2 (Camera Serial Interface) applications. The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
View MIPI D-PHY CSI-2 RX+ (Receiver) IP in UMC 40ULP full description to...
- see the entire MIPI D-PHY CSI-2 RX+ (Receiver) IP in UMC 40ULP datasheet
- get in contact with MIPI D-PHY CSI-2 RX+ (Receiver) IP in UMC 40ULP Supplier

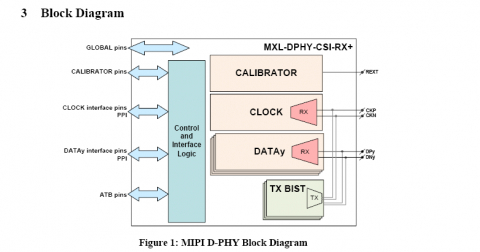

Block Diagram of the MIPI D-PHY CSI-2 RX+ (Receiver) IP in UMC 40ULP
