MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 40LP
The MXL-DPHY-CSI-2-TX-T-40LP is a high-frequency low-power, low-cost, source-synchronous, Physical Layer compliant with the MIPI Alliance Standard for D-PHY.
The IP is configured as a MIPI master and consists of 5 lanes: 1 Clock lane and 4 data lanes, which make it suitable for camera interface applications (CSI2).
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed Data traffic while low power functions are mostly used for control.
The IP is configured as a MIPI master and consists of 5 lanes: 1 Clock lane and 4 data lanes, which make it suitable for camera interface applications (CSI2).
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed Data traffic while low power functions are mostly used for control.
View MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 40LP full description to...
- see the entire MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 40LP datasheet
- get in contact with MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 40LP Supplier

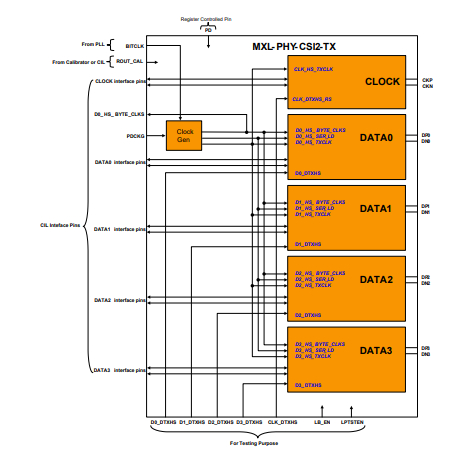

Block Diagram of the MIPI D-PHY CSI-2 TX (Transmitter) in TSMC 40LP
