MIPI D-PHY DSI RX (Receiver) in UMC 40HV
The MXL-DPHY-DSI-RX is a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI Alliance Specification for D-PHY v1.1.
The IP is configured as a MIPI Slave optimized for DSI (Display Serial Interface) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
The IP is configured as a MIPI Slave optimized for DSI (Display Serial Interface) applications.
The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
View MIPI D-PHY DSI RX (Receiver) in UMC 40HV full description to...
- see the entire MIPI D-PHY DSI RX (Receiver) in UMC 40HV datasheet
- get in contact with MIPI D-PHY DSI RX (Receiver) in UMC 40HV Supplier

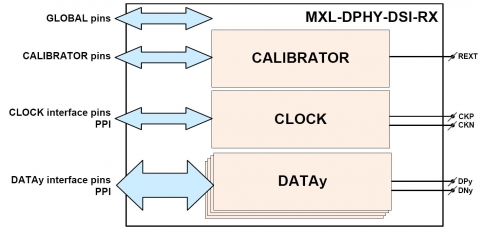

Block Diagram of the MIPI D-PHY DSI RX (Receiver) in UMC 40HV
