MIPI D-PHY Universal IP in TSMC 22ULP
The MXL-DPHY-UNIV is a high-frequency low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHY v2.1, which is backward compatible with MIPI Specification for D-PHY v1.1. The PHY can be configured as a MIPI Master or MIPI Slave supporting camera interface CSI-2 and display interface DSI applications. The High-Speed signals have a low voltage swing, while Low-Power signals have large swing. High-Speed functions are used for High-Speed data traffic while low power functions are mostly used for control.
View MIPI D-PHY Universal IP in TSMC 22ULP full description to...
- see the entire MIPI D-PHY Universal IP in TSMC 22ULP datasheet
- get in contact with MIPI D-PHY Universal IP in TSMC 22ULP Supplier

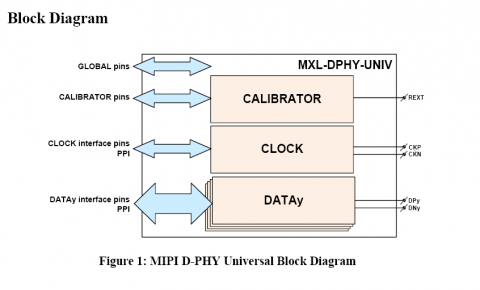

Block Diagram of the MIPI D-PHY Universal IP in TSMC 22ULP
