MIPI D-PHY Universal IP in TSMC 28HPC+
The MXL-DPHY-UNIV-T-28HPC+ is a high-frequency, low-power, low-cost, source-synchronous, physical Layer supporting the MIPI Alliance Specification for D-PHYv2.5. The PHY can be configured as a MIPI Master or MIPI Slave supporting camera interface CSI-2 and display interface DSI/DSI-2. The PHY supports mobile, IoT, virtual reality, and automotive applications
View MIPI D-PHY Universal IP in TSMC 28HPC+ full description to...
- see the entire MIPI D-PHY Universal IP in TSMC 28HPC+ datasheet
- get in contact with MIPI D-PHY Universal IP in TSMC 28HPC+ Supplier

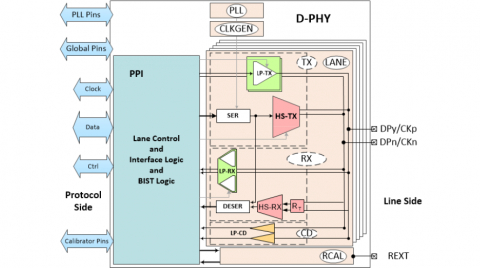

Block Diagram of the MIPI D-PHY Universal IP in TSMC 28HPC+
