MIPI Compliant M-PHY
The MIPI M-PHY is a high-frequency low-power, low-cost, Physical Layer IP compliant with the MIPI Alliance Standard for M-PHY. The IP can be used as a physical layer for many applications, including interfaces for display, camera, audio, video, memory, power management and Baseband to RFIC.
It supports the following standards: DigRF v4, CSI-3, DSI-2, Uniport-M (UniPro1.5) and JC-64.1 UFS.
By using efficient BURST mode operation with scalable speeds, significant power savings can be obtained.
Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates.
It supports the following standards: DigRF v4, CSI-3, DSI-2, Uniport-M (UniPro1.5) and JC-64.1 UFS.
By using efficient BURST mode operation with scalable speeds, significant power savings can be obtained.
Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates.
View MIPI M-PHY Compliant (HS-G2) IP full description to...
- see the entire MIPI M-PHY Compliant (HS-G2) IP datasheet
- get in contact with MIPI M-PHY Compliant (HS-G2) IP Supplier

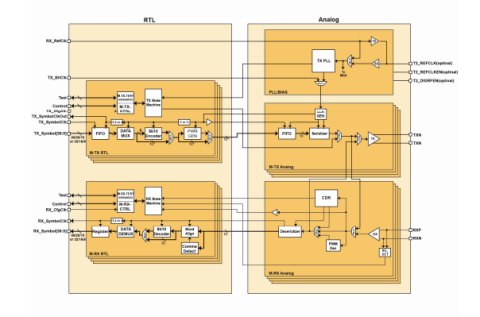

Block Diagram of the MIPI Compliant M-PHY
