MIPI M-PHY HS-G4 IP (M-PHY v4.1) in TSMC 40G
The MXL-MIPI-M-PHY is a high-frequency low-power, low-cost, Physical Layer IP compliant with the MIPI Alliance Standard for M-PHY. The IP can be used as a physical layer for many applications, including interfaces for display, camera, audio, video, memory, power management and Baseband to RFIC. It supports the following standards: CSI-3, DSI-2, Uniport-M (UniPro1.41) LLI and JC-64.1 UFS.
By using efficient Burst mode operation with scalable speeds, significant power savings can be obtained. Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates.
By using efficient Burst mode operation with scalable speeds, significant power savings can be obtained. Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates.
View MIPI M-PHY HS-G4 IP (M-PHY v4.1) in TSMC 40G full description to...
- see the entire MIPI M-PHY HS-G4 IP (M-PHY v4.1) in TSMC 40G datasheet
- get in contact with MIPI M-PHY HS-G4 IP (M-PHY v4.1) in TSMC 40G Supplier

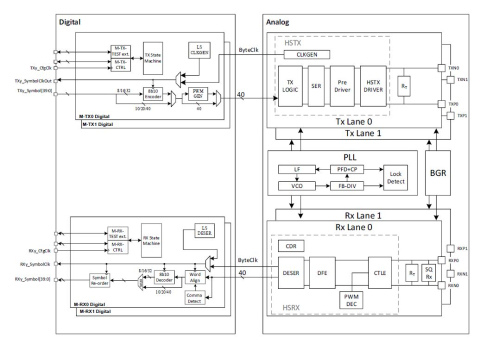

Block Diagram of the MIPI M-PHY HS-G4 IP (M-PHY v4.1) in TSMC 40G
