SD 5.1 / eMMC 5.1 Host Controller IP
Our Host IP is specially designed to combo both SD eMMC features.
SD feature: The Secure Digital (SD) Card, supports SD5.1 and later specifications, ( A1, Video Speed Class Performance ) It allows the selection of either SD or SPI mode. To store and transfer data securely, the controller provides both data write protection and password protection. The multiple (x1 bit, x4 bit) bus-width feature allows host design flexibility and higher data transfer bandwidth.
eMMC feature: The feature of eMMC 5.1 controller is designed based on the JEDEC Standard Specification No.JESD84-B51.
SD feature: The Secure Digital (SD) Card, supports SD5.1 and later specifications, ( A1, Video Speed Class Performance ) It allows the selection of either SD or SPI mode. To store and transfer data securely, the controller provides both data write protection and password protection. The multiple (x1 bit, x4 bit) bus-width feature allows host design flexibility and higher data transfer bandwidth.
eMMC feature: The feature of eMMC 5.1 controller is designed based on the JEDEC Standard Specification No.JESD84-B51.
View SD 5.1 / eMMC 5.1 Host Controller IP full description to...
- see the entire SD 5.1 / eMMC 5.1 Host Controller IP datasheet
- get in contact with SD 5.1 / eMMC 5.1 Host Controller IP Supplier

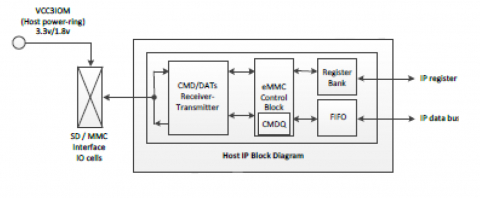

Block Diagram of the SD 5.1 / eMMC 5.1 Host Controller IP IP Core
SD 5.1 eMMc Controller IP
