Temperature Sensor

The WEATS18PI12RO12M22G is a temperature sensor that operates from -40 oC to 150 oC and produces an output voltage from 0 to 1.2 V. The sensor has an absolute accuracy of +/- 6.73 oC @ 125 oC (3-sigma) and after external offset calibration (one-point) the maximum residual error is below +/-1.5 oC @125 oC (3-sigma). The sensor operates from a supply of 1.8 V.

View Temperature Sensor full description to...

see the entire Temperature Sensor datasheet
get in contact with Temperature Sensor Supplier

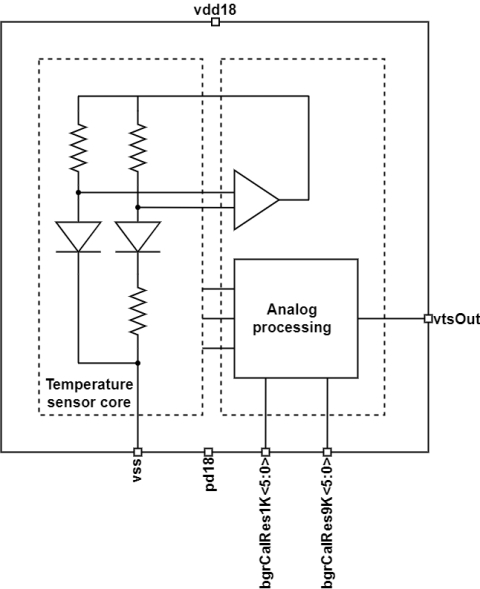

Block Diagram of the Temperature Sensor IP Core
