ULP Bandgap Reference - Ultra Low Current (150nA) Silterra 0.18 μm

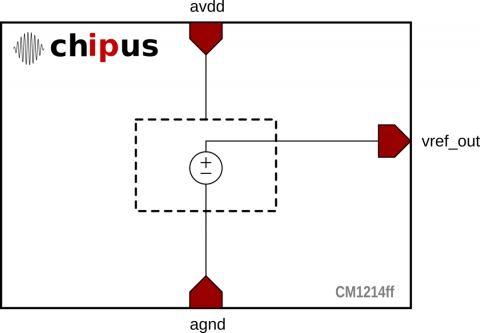

This macro-cell is an ultra low power voltage reference generator core designed for SilTerra 0.18µm CL180G CMOS technology. The core is ideal as a general purpose reference voltage in applications where power consumption is critical. The circuit generates an unbuffered 1180mV, temperature compensated bandgap voltage reference (47ppm/ C). Internal start-up circuit allows that the reference voltage is available as soon as the power supply ramps up, so that no enable/disable function is necessary to start-up the circuit. The core is easily re-targeted to any other CMOS technology.
