2.2GHz Fractional-N/SSC PLL
The ll_pll2651s01_ln28lpp_7002 is a 1.8V/1.0V dual supply-voltage phase locked loop (PLL) with a wide-output-frequency-range for frequency synthesis. It consists of a phase frequency detector (PFD), a charge pump, a voltage-controlled oscillator (VCO), a 6-bit pre-divider, a 9-bit main-divider, a 3-bit scaler, a delta-sigma modulator (DSM) and an automatic frequency control (AFC).
View 2.2GHz Fractional-N/SSC PLL full description to...
- see the entire 2.2GHz Fractional-N/SSC PLL datasheet
- get in contact with 2.2GHz Fractional-N/SSC PLL Supplier

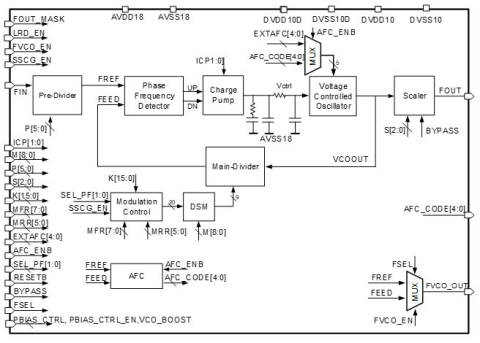

Block Diagram of the 2.2GHz Fractional-N/SSC PLL IP Core
