5G Ultra low power Sub-6 GHz RF Transceiver IP
This is a 3GPP compliant 5G Sub-6GHz RF Transceiver IP optimized for cellular application. It integrates all the necessary RF/analog/mixed signal functions for a 3GPP Universal/5G/4G/3G 2x2 transceiver for low cost and low-power applications with fully integrated frequency synthesizer. It offers a high level of programmability, making it an ideal universal radio.
The receive path (RX) has very high dynamic range and is implemented with direct conversion architecture. A direct conversion TX generates low EVM signals to drive the external power amplifier. Two fully integrated Frac-N frequency synthesizers and LO-chains generate the required low phase-noise LO signals for TX and RX mixers. A complete GPS receiver with a frequency synthesizer is also integrated.
The receive path (RX) has very high dynamic range and is implemented with direct conversion architecture. A direct conversion TX generates low EVM signals to drive the external power amplifier. Two fully integrated Frac-N frequency synthesizers and LO-chains generate the required low phase-noise LO signals for TX and RX mixers. A complete GPS receiver with a frequency synthesizer is also integrated.
View 5G Ultra low power Sub-6 GHz RF Transceiver IP full description to...
- see the entire 5G Ultra low power Sub-6 GHz RF Transceiver IP datasheet
- get in contact with 5G Ultra low power Sub-6 GHz RF Transceiver IP Supplier

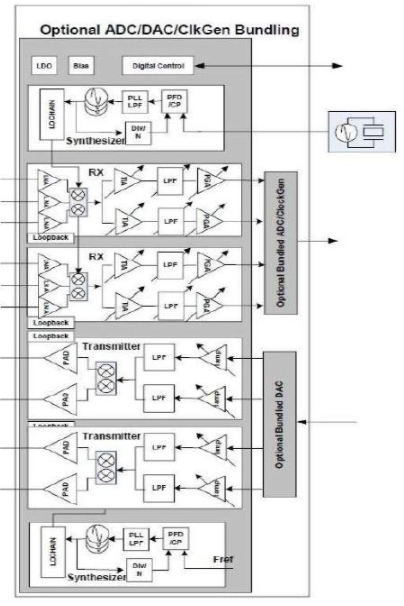

Block Diagram of the 5G Ultra low power Sub-6 GHz RF Transceiver IP
