MIPI M-PHY in TSMC 65LP
The MXL-M-PHY-DIGRF is a high-frequency low-power, low-cost, Physical Layer IP that supports the MIPI® Alliance Standard for M-PHY and DigRF. The IP can be used as a physical layer for the Baseband to RFIC interface. It supports the DigRF v4 standard.
By using efficient BURST mode operation with scalable speeds, significant power savings can be obtained.
Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates. The core employs Mixel’s Logarithmic approach, enabling efficient implementation of multiple configurations.
By using efficient BURST mode operation with scalable speeds, significant power savings can be obtained.
Selection of signal slew rate and amplitude allows reduction of EMI/RFI, while maintaining low bit error rates. The core employs Mixel’s Logarithmic approach, enabling efficient implementation of multiple configurations.
View MIPI M-PHY in TSMC 65LP full description to...
- see the entire MIPI M-PHY in TSMC 65LP datasheet
- get in contact with MIPI M-PHY in TSMC 65LP Supplier

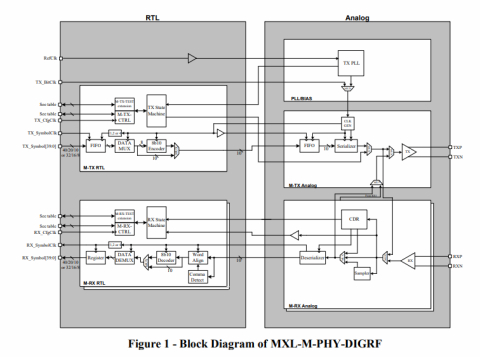

Block Diagram of the MIPI M-PHY in TSMC 65LP IP Core
